How much do you know about double-axis orbits?

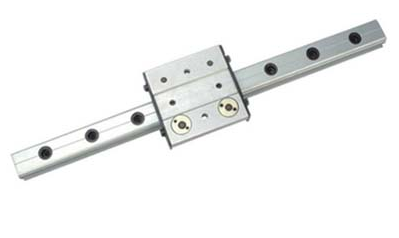

The OSG Series Guide Rails rail zui has a high speed of up to 10m/s. The wear part of the double-axis guide rail is made of high-carbon chrome-plated bearing steel with strong wear resistance. After high-frequency induction heat treatment, it is then precision grinded. The surface hardness is above HRC60, so it can guarantee a longer life than the existing guide rail. Double-row bearings are used to make the sliding accuracy within ±0.02. Precision equipment will also produce tolerance from fine dust, causing product defects, so fine dust cannot be tolerated. In order to avoid this, our guide rail is equipped with a device to remove fine dust on the shaft.

Roller structure, high-speed operation with extremely low noise

The existing guide rails use steel ball roller technology. Most of the steel balls roll in the ball circulation path of the track and slider, so they cause noise and the speed of movement is limited. However, our double-axis high-speed guide rail adopts a double-row bearing, and the bearing will roll down, so it will get the linear motion and effect of zui large rotation speed.The gap accuracy can be adjusted. The composition of the guide rail and slider can also be adjusted by using the nut on the side of the slider

Major features of double-axis guide rails

(1) Corrosion resistance and rust resistance

The slider of the double-axis slide rail, the axial support seat, is made of aluminum alloy. After processing, the surface is treated with anode, which is not only beautiful in appearance but also corrosion-resistant. In addition, the shaft-plated hard chrome does not rust, so it has excellent anti-rust effect.

(2) Easy to assemble

Dual-axis sliding rail products have been standardized and standardized. It is not only convenient for customers to design and choose, but also very convenient and easy to assemble.

(3) Easy to exchange

Slip fast and slide rail can be supplied separately. Customers * use it for a period of time. Even if there is wear and damage, it has * interchangeability.

(4) Smooth operation and low noise

Sliding by the linear bearing in contact with the axis. Therefore, it runs very smoothly and has low noise.

(5) Good economic benefits

With the characteristics of lightweight, corrosion resistance, interchangeability, easy assembly, etc., it is applied to various mechanical equipment, which can give full play to the great performance of zui and achieve the great economic benefits of zui of labor-saving, lightweight and automated zui.

(6) Low cost

The double-axis slide rail has a simple structure, mass production, and easy and fast product assembly. Compared with various types of slide rails, its cost is relatively low and it has a competitive price advantage.

If you want more details, please contact us and we will answer for you within 24 hours.
