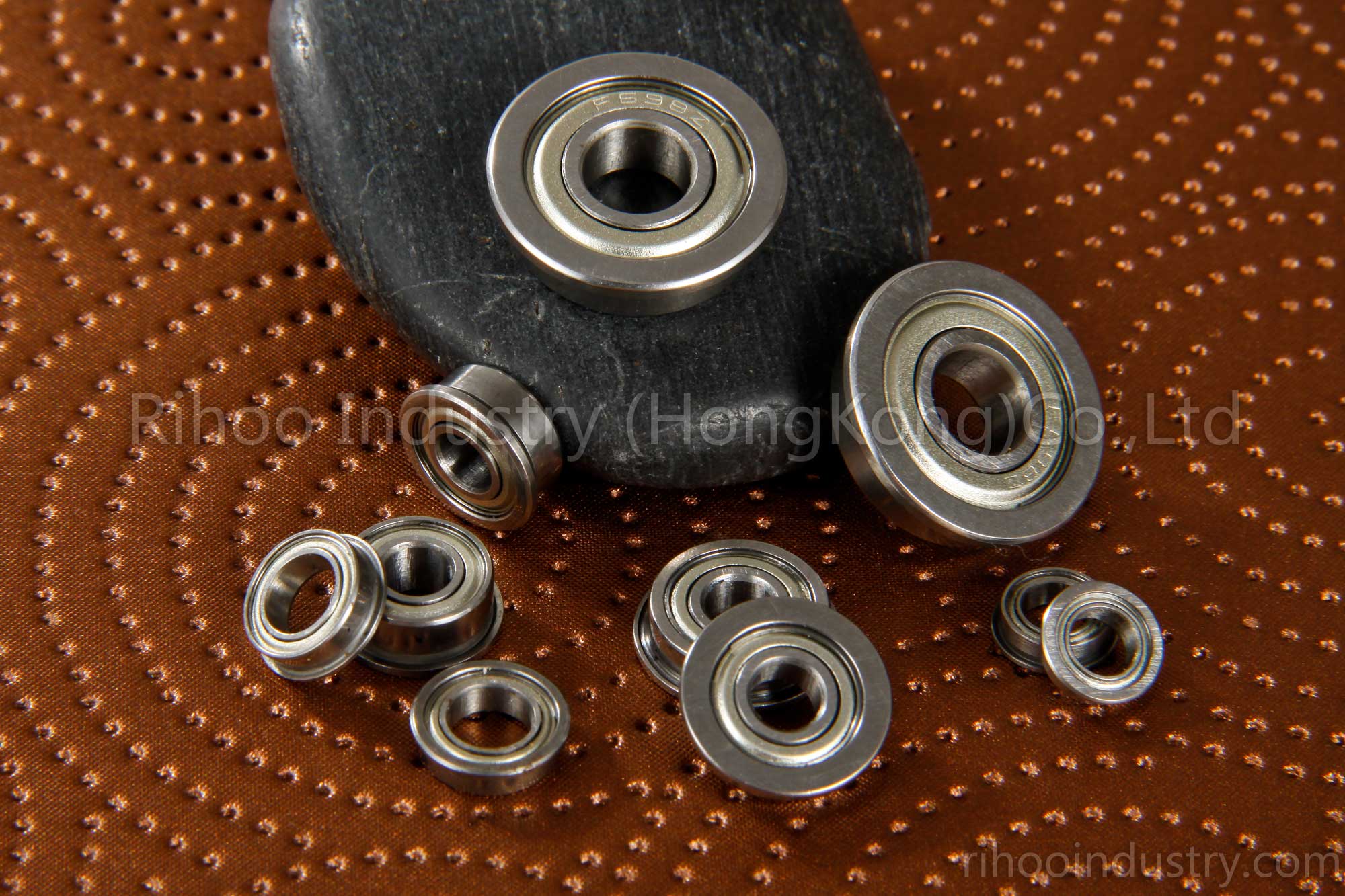

Flanged Miniature Ball Bearings

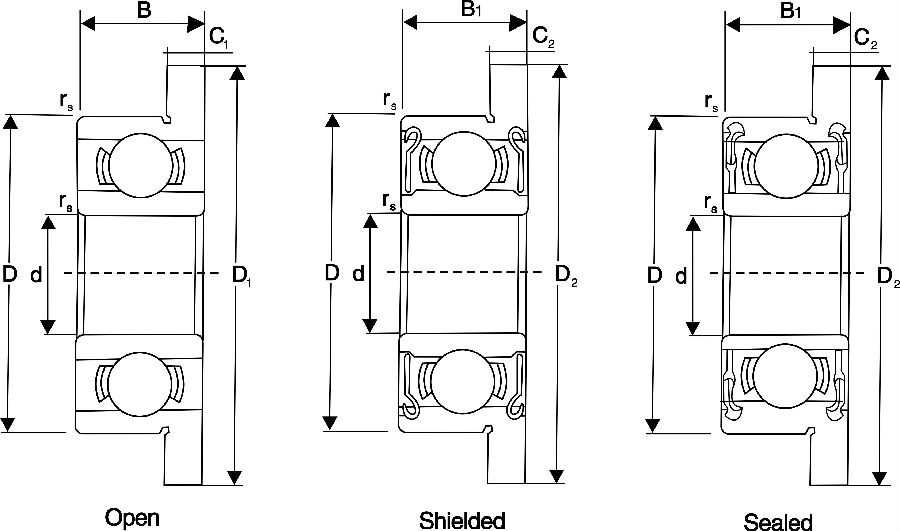

| Overall dimension(mm) | Bearing No. | Load rating(N) | Limiting speeds(rpm) | ||||||||||||
| d | D | B | B1 | D1 | D2 | C1 | C2 | rsmin | Open | Shielded | Sealed | Cr | Cor | Grease | Oil |
| 3 | 10 | 4 | 4 | 11.5 | 11.5 | 1 | 1 | 0.15 | F623 | F623ZZ | F623-2RS | 630 | 218 | 50000 | 60000 |
| 4 | 9 | 2.5 | 4 | 10.3 | 10.3 | 0.6 | 1 | 0.1 | F684 | F684ZZ | F684-2RS | 640 | 225 | 53000 | 63000 |
| 11 | 4 | 4 | 12.5 | 12.5 | 1 | 1 | 0.15 | F694 | F694ZZ | F694-2RS | 960 | 345 | 48000 | 56000 | |
| 12 | 4 | 4 | 13.5 | 13.5 | 1 | 1 | 0.2 | F604 | F604ZZ | F604-2RS | 970 | 360 | 48000 | 56000 | |
| 13 | 5 | 5 | 15 | 15 | 1 | 1 | 0.2 | F624 | F624ZZ | F624-2RS | 1300 | 485 | 40000 | 48000 | |
| 16 | 5 | 5 | 18 | 18 | 1 | 1 | 0.3 | F634 | F634ZZ | F634-2RS | 1880 | 680 | 36000 | 43000 | |
| 5 | 10 | 3 | 4 | 11.2 | 11.6 | 0.6 | 0.8 | 0.15 | MF105 | MF105ZZ | / | 430 | 168 | 50000 | 60000 |
| 11 | 3 | 5 | 12.5 | 12.5 | 0.8 | 1 | 0.15 | F685 | F685ZZ | F685-2RS | 715 | 281 | 45000 | 53000 | |
| 13 | 4 | 4 | 15 | 15 | 1 | 1 | 0.2 | F695 | F695ZZ | F695-2RS | 1080 | 430 | 43000 | 50000 | |
| 14 | 5 | 5 | 16 | 16 | 1 | 1 | 0.2 | F605 | F605ZZ | F605-2RS | 1090 | 440 | 40000 | 50000 | |
| 16 | 5 | 5 | 18 | 18 | 1 | 1 | 0.3 | F625 | F625ZZ | F625-2RS | 1880 | 680 | 36000 | 43000 | |
| 19 | 6 | 6 | 22 | 22 | 1.5 | 1.5 | 0.3 | F635 | F635ZZ | F635-2RS | 2340 | 885 | 32000 | 40000 | |
| 6 | 12 | 3 | 4 | 13.2 | 13.6 | 0.6 | 0.8 | 0.15 | MF126 | MF126ZZ | MF126-2RS | 715 | 292 | 43000 | 50000 |
| 13 | 3.5 | 5 | 15 | 15 | 1 | 1.1 | 0.15 | F686 | F686ZZ | F686-2RS | 1080 | 440 | 40000 | 50000 | |
| 15 | 5 | 5 | 17 | 17 | 1.2 | 1.2 | 0.2 | F696 | F696ZZ | F696-2RS | 1470 | 600 | 40000 | 45000 | |
| 17 | 6 | 6 | 19 | 19 | 1.2 | 1.2 | 0.3 | F606 | F606ZZ | F606-2RS | 1970 | 735 | 38000 | 45000 | |
| 19 | 6 | 6 | 22 | 22 | 1.5 | 1.5 | 0.3 | F626 | F626ZZ | F626-2RS | 2340 | 885 | 32000 | 40000 | |
| 7 | 11 | 2.5 | 3 | 12.2 | 12.2 | 0.6 | 0.6 | 0.1 | MF117 | MF117ZZ | / | 455 | 201 | 43000 | 50000 |
| 13 | 3 | 4 | 14.2 | 14.6 | 0.6 | 0.8 | 0.15 | MF137 | MF137ZZ | / | 540 | 276 | 40000 | 48000 | |
| 14 | 3.5 | 5 | 16 | 16 | 1 | 1.1 | 0.15 | F687 | F687ZZ | F687-2RS | 1170 | 510 | 40000 | 45000 | |
| 17 | 5 | 5 | 19 | 19 | 1.2 | 1.2 | 0.3 | F697 | F697ZZ | F697-2RS | 1610 | 710 | 36000 | 43000 | |
| 19 | 6 | 6 | 22 | 22 | 1.5 | 1.5 | 0.3 | F607 | F607ZZ | F607-2RS | 2340 | 885 | 36000 | 43000 | |
| 22 | 7 | 7 | 25 | 25 | 1.5 | 1.5 | 0.3 | F627 | F627ZZ | F627-2RS | 3300 | 1370 | 30000 | 36000 | |
| 8 | 12 | 2.5 | 3.5 | 13.2 | 13.6 | 0.6 | 0.8 | 0.1 | MF128 | MF128ZZ | / | 545 | 275 | 40000 | 45000 |
| 14 | 3.5 | 4 | 15.6 | 15.6 | 0.8 | 0.8 | 0.15 | MF148 | MF148ZZ | MF148-2RS | 820 | 385 | 38000 | 43000 | |
| 16 | 4 | 5 | 18 | 18 | 1.0 | 1.1 | 0.2 | F688 | F688ZZ | F688-2RS | 1605 | 715 | 36000 | 43000 | |
| 19 | 6 | 6 | 22 | 22 | 1.5 | 1.5 | 0.3 | F698 | F698ZZ | F698-2RS | 2240 | 910 | 36000 | 40000 | |
| 22 | 7 | 7 | 25 | 25 | 1.5 | 1.5 | 0.3 | F608 | F608ZZ | F608-2RS | 3300 | 1370 | 34000 | 40000 | |
| 24 | 8 | 8 | 26 | 26 | 2 | 2 | 0.3 | F628 | F628ZZ | F628-2RS | 3350 | 1430 | 28000 | 34000 | |
| 9 | 17 | 4 | 5 | 19 | 19 | 1.0 | 1.1 | 0.2 | F689 | F689ZZ | F689-2RS | 1330 | 665 | 36000 | 40000 |
| 20 | 6 | 6 | 23 | 23 | 1.5 | 1.5 | 0.3 | F699 | F699ZZ | F699-2RS | 2850 | 1090 | 34000 | 38000 | |
| 24 | 7 | 7 | 27 | 27 | 1.5 | 1.5 | 0.3 | F609 | F609ZZ | F609-2RS | 3350 | 1430 | 32000 | 34000 | |
| 26 | 8 | 8 | 28 | 28 | 2 | 2 | 0.3 | F629 | F629ZZ | F629-2RS | 4550 | 1970 | 28000 | 30000 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
