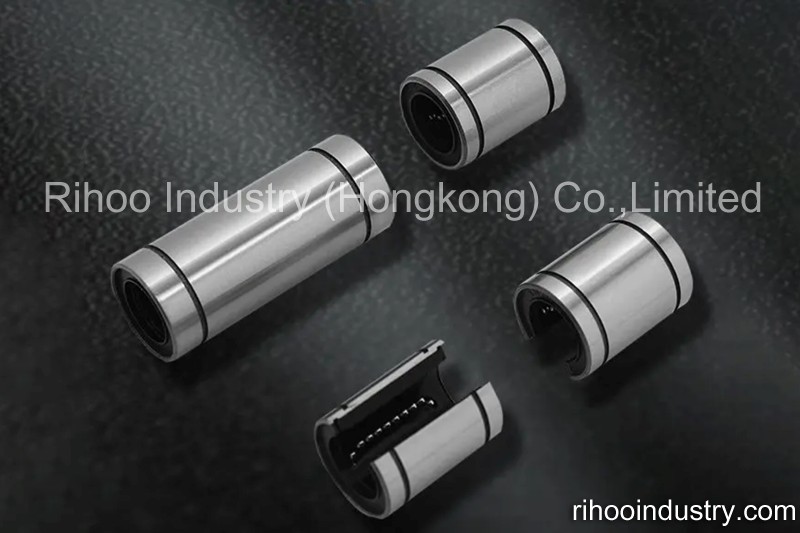

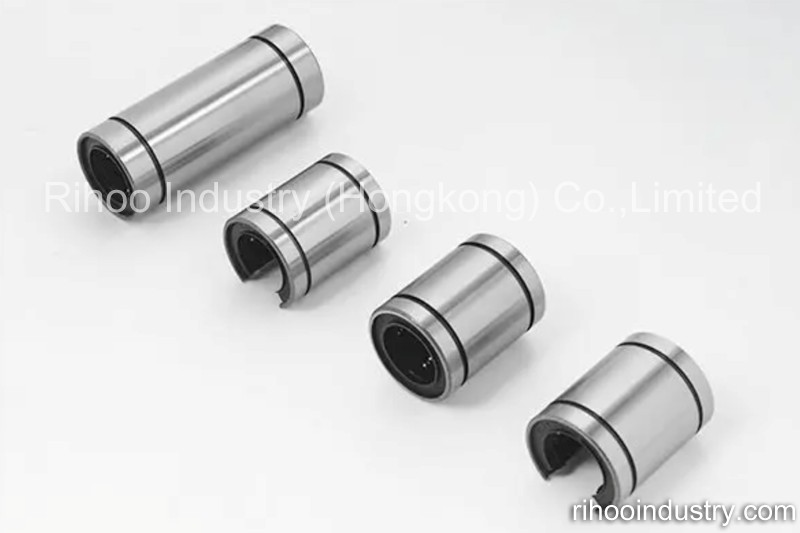

Linear Motion Bearings for Humanoid Robots are used in linear motion components, such as telescoping arms and leg lifting mechanisms, to provide low-friction guidance.
Linear Motion Bearings for Humanoid Robots are used in linear motion components, such as telescoping arms and leg lifting mechanisms, to provide low-friction guidance.

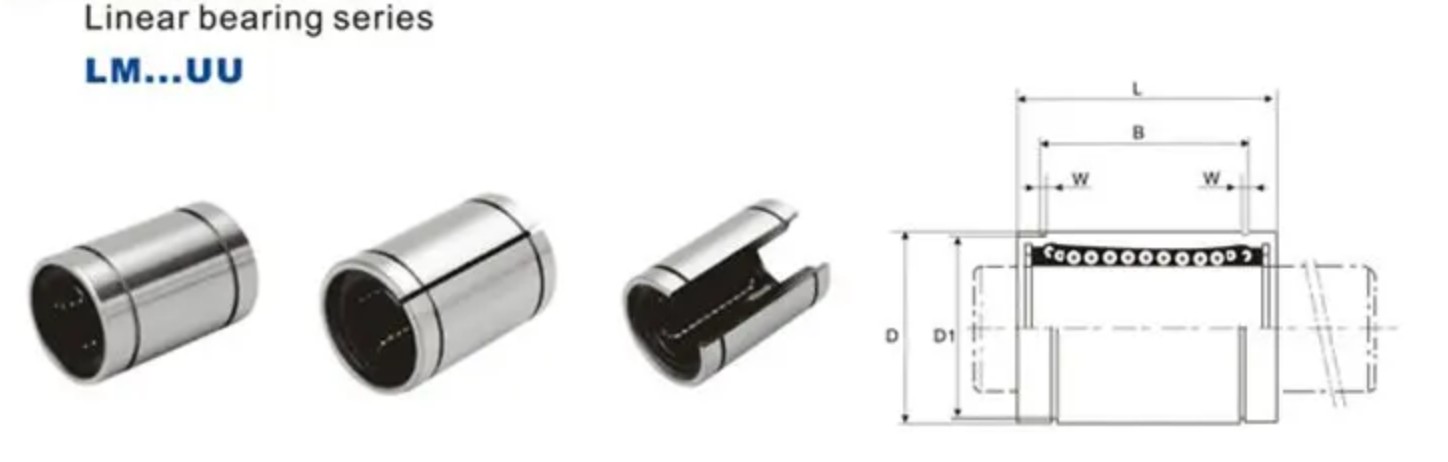

| Fix Type | Types | Adjust Type | Open Type | Main Datas | |||||
| Inner Diameter dr | Outer Diameter D | ||||||||
| Ball Lines | Weight | Allowed Clerance | Allowed Clerance | ||||||
| Precision | High | Precision ٠ High | |||||||
| LM 3UU | 4 | 1.4 | ‒ | ‒ | 3 | 0 -0.005 | 0 -0.008 | 7 | 0 -0.009 |
| LM 4UU | 4 | 1.9 | ‒ | ‒ | 4 | 8 | |||
| LM 5UU | 4 | 4 | LM 5UUAJ | ‒ | 5 | 10 | |||
| LM 6UU | 4 | 8 | LM 6UUAJ | ‒ | 6 | 0 -0.006 | 0 -0.009 | 12 | 0 -0.011 |
| LM 8SU | 4 | 11 | LM 8SUAJ | ‒ | 8 | 15 | |||
| LM 8UU | 4 | 16 | LM 8UUAJ | ‒ | 8 | 15 | |||
| LM 10UU | 4 | 30 | LM 10UUAJ | ‒ | 10 | 19 | 0 -0.013 | ||
| LM 12UU | 4 | 31.5 | LM 12UUAJ | LM 12UUOP | 12 | 21 | |||
| LM 13UU | 4 | 43 | LM 13UUAJ | LM 13UUOP | 13 | 23 | |||
| LM 16UU | 4 | 69 | LM 16UUAJ | LM 16UUOP | 16 | 26 | |||
| LM 20UU | 5 | 87 | LM 20UUAJ | LM 20UUOP | 20 | 0 -0.007 | 0 -0.010 | 32 | 0 -0.016 |
| LM 25UU | 6 | 220 | LM 25UUAJ | LM 25UUOP | 25 | 40 | |||
| LM 30UU | 6 | 250 | LM 30UUAJ | LM 30UUOP | 30 | 45 | |||
| LM 35UU | 6 | 390 | LM 35UUAJ | LM 35UUOP | 35 | 0 -0.008 | 0 -0.012 | 52 | 0 -0.019 |
| LM 40UU | 6 | 585 | LM 40UUAJ | LM 40UUOP | 40 | 60 | |||
| LM 50UU | 6 | 1580 | LM 50UUAJ | LM 50UUOP | 50 | 80 | |||
| LM 60UU | 6 | 2000 | LM 60UUAJ | LM 60UUOP | 60 | 0 -0.009 | 0 -0.015 | 90 | 0 -0.022 |
| LM 80UU | 6 | 4520 | LM 80UUAJ | LM 80UUOP | 80 | 120 | |||
| LM 100UU | 6 | 8600 | LM 100UUAJ | LM 100UUOP | 100 | 0 -0.010 | 0 -0.020 | 150 | 0 -0.025 |
| LM 120UU | 8 | 15000 | LM 120UUAJ | LM 120UUOP | 120 | 180 | |||
| LM 150UU | 8 | 20250 | LM 150UUAJ | LM 150UUOP | 150 | 0 -0.010 | 0 -0.025 | 210 | 0 -0.029 |
