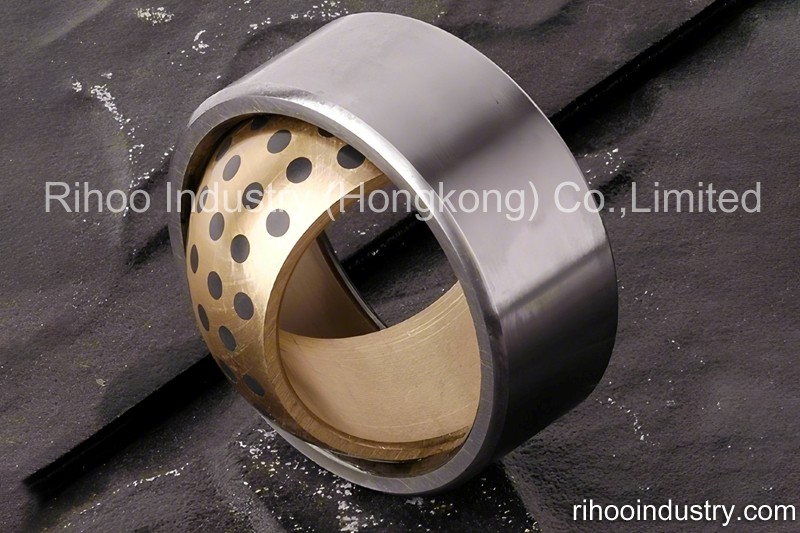

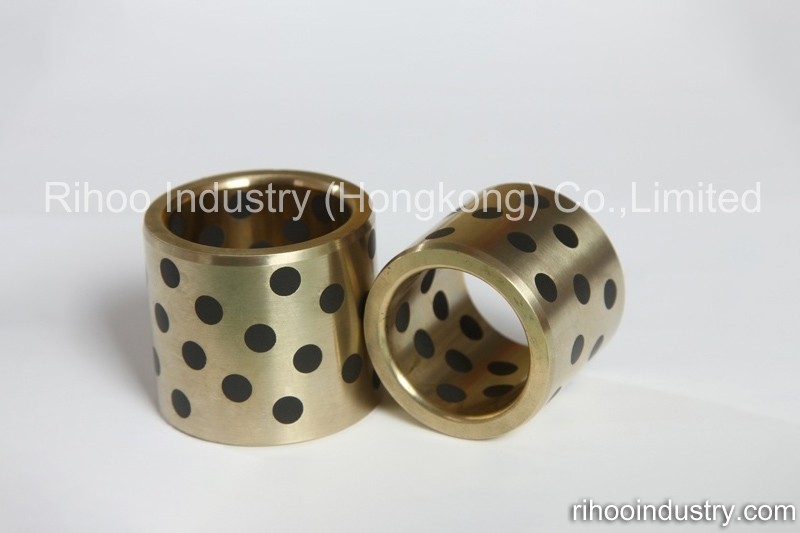

Sliding Bearings ( Self-Lubricating ) for Humanoid Robots are used in low load, high-frequency oscillating applications, such as robotic finger joints, to reduce maintenance.
Sliding Bearings ( Self-Lubricating ) for Humanoid Robots are used in low load, high-frequency oscillating applications, such as robotic finger joints, to reduce maintenance.
| Maximum Load | Static Load | 250N/mm² | Operating Temperature | (-100˚C) ~ (+300˚C) |
| Dynamic Load | 100N/mm² | Friction Factor | 0.03 ~ 0.20 | |
| Maximum Linear Velocity | Dry Friction | 0.5m/s | Thermal Conductivity | 60W(m*K)ˉ¹ |
| Lubrication Condition | 1.0m/s | Coefficient of Thermal Expansion | 19*10ˉ⁶*Kˉ¹ | |
| Maximum PV | 3.25N/mm²*m/s | Bonding Strength of the Alloy Layer | 150N/mm² | |
| Hardness of The Alloy Layer | HB>210 | |||
